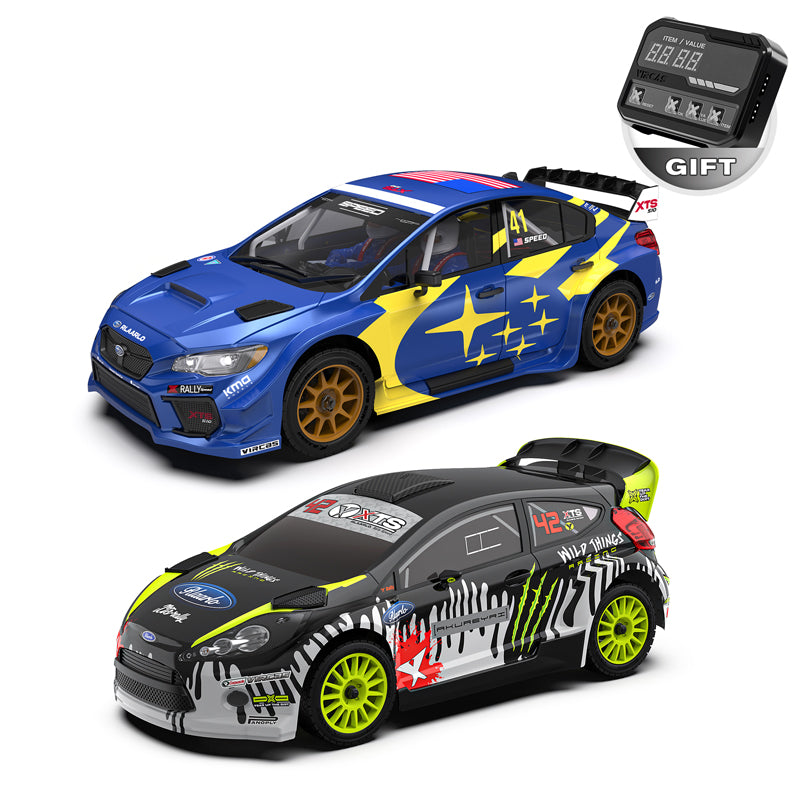

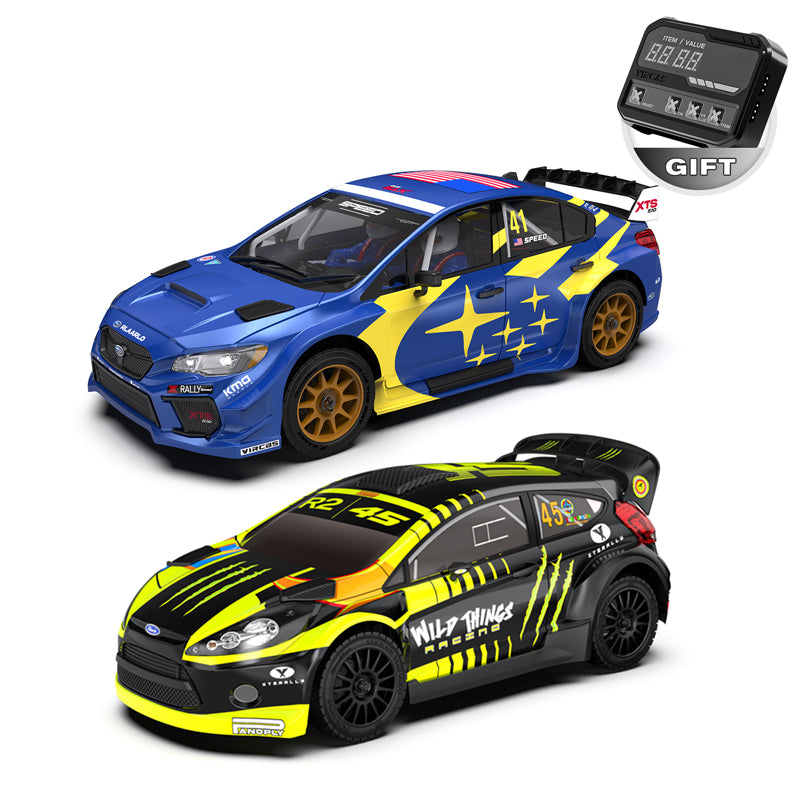

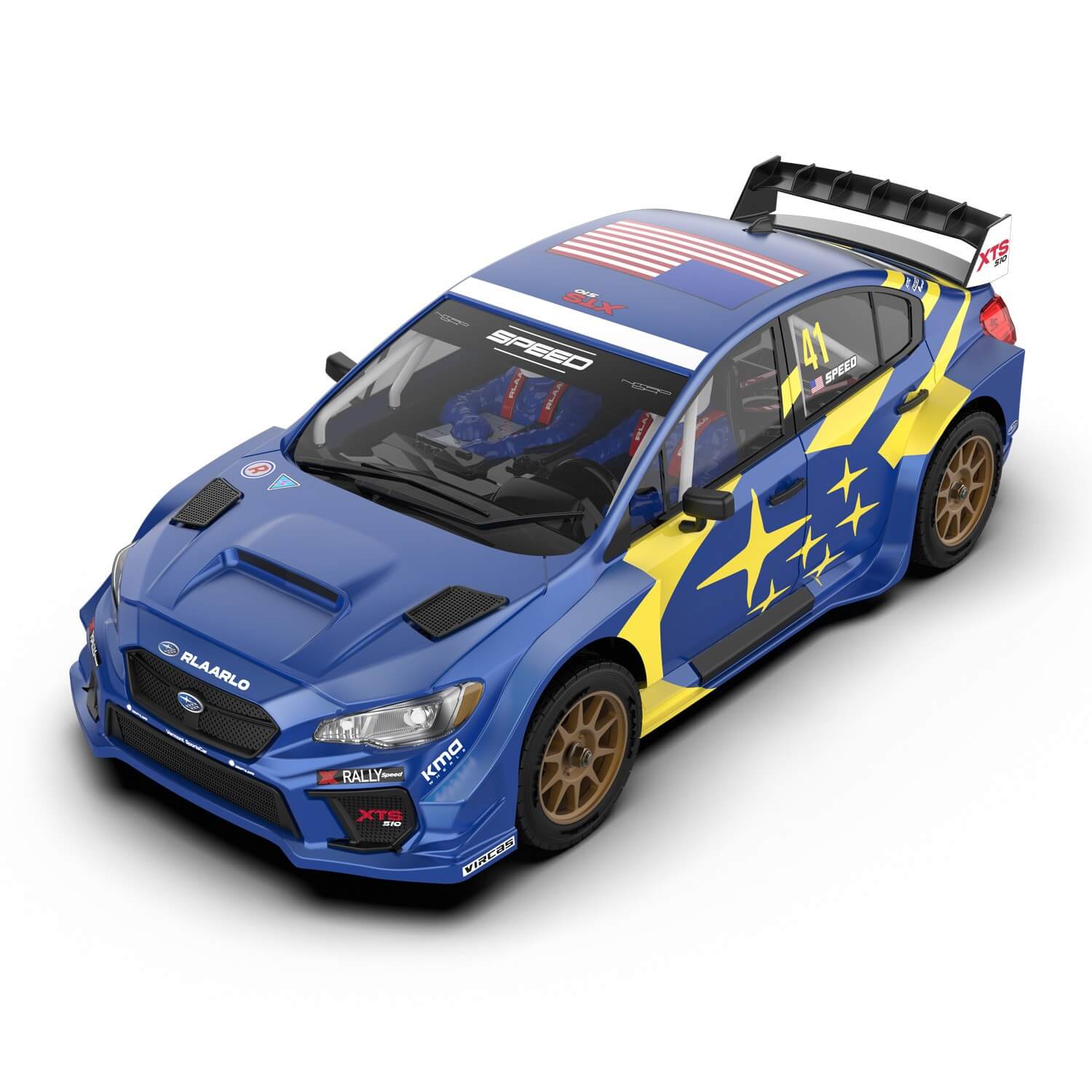

Rlaarlo 1/10 Scale Brushless RTR Rally Car
XTS-S10
XTS-S10 features a rally-inspired suspension setup, custom-engineered metal shock towers, hydraulic dampers, and an extra-thick anti-roll bar for enhanced handling! Paired with premium soft-compound tires and rally-style wheels, this rally car is sure to make you the center of attention in an instant.
XTS-S10 YouTube Live Event Alert
November 21th, 23:00 GMT
(Beijing Time）
RANKING:1-100
RANKING:101-300
RANKING | GIFT | PRICE | QUANTITY |
|---|---|---|---|
1-100 | ESC Programming Card | $19.99 | 100 |
101-300 | Aluminum Servo | $ 12.99 | 200 |
1. The first 100 buyers will get Metal Disc Brake Caliper Adapter Kit, and Aluminum Servo Conversion Block for the 101st to 300th buyers.

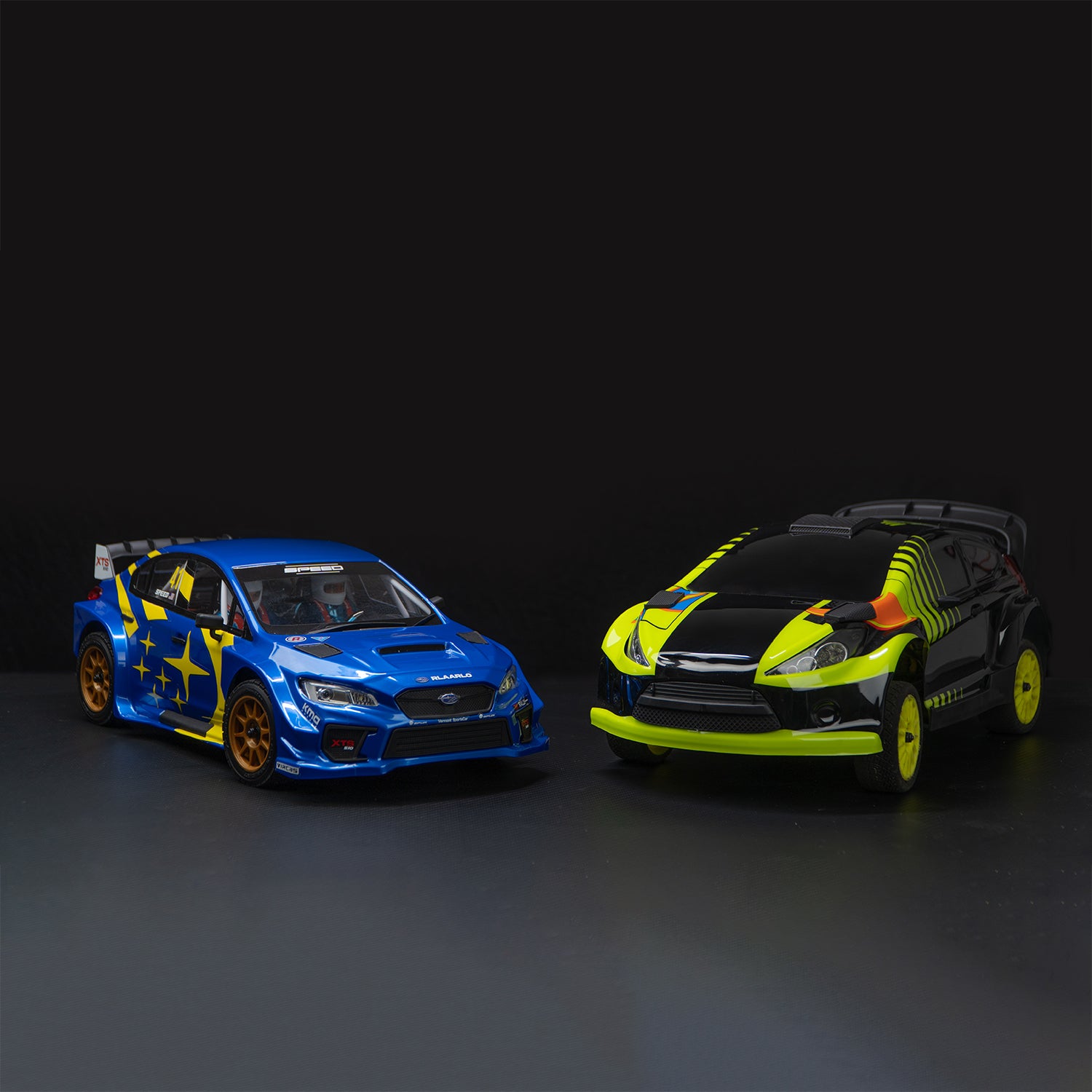

2. The first 300 buyers the XTS-F10 RC Rally Car (Including Roller Version) with same email address, order number, location only can get one present; that means one buyer can get one present only.
3. Please note that if your order contains XTS-S10 Series items, gifts may be sent separately.
RLAARLO reserves the right to clarify the principle. If you have any questions or inquiries, please feel free to contact our customer service team.
XTS-S10 VERSIONS
HONORING THE LEGEND

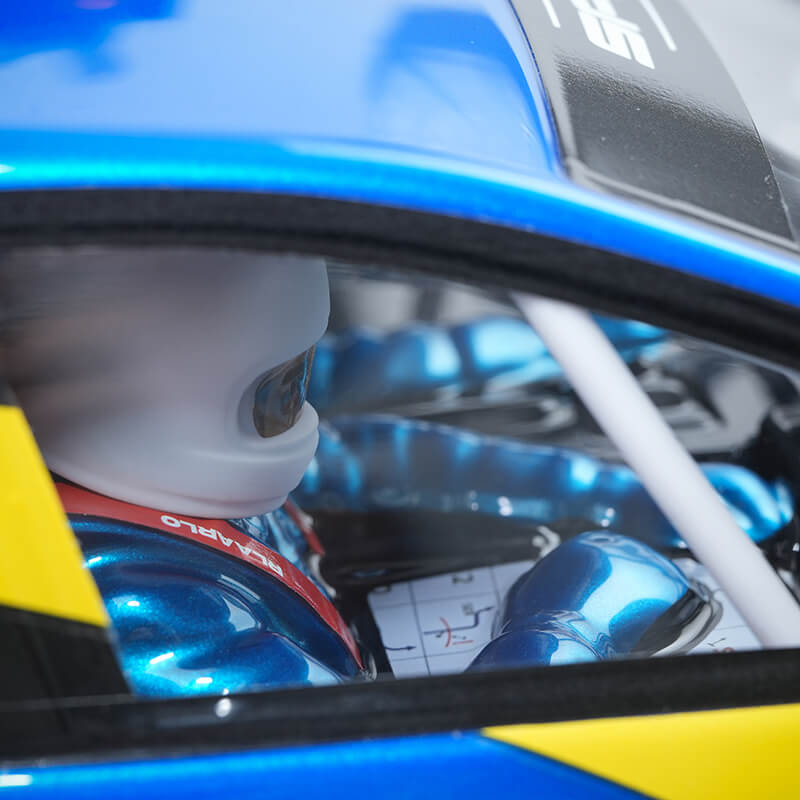

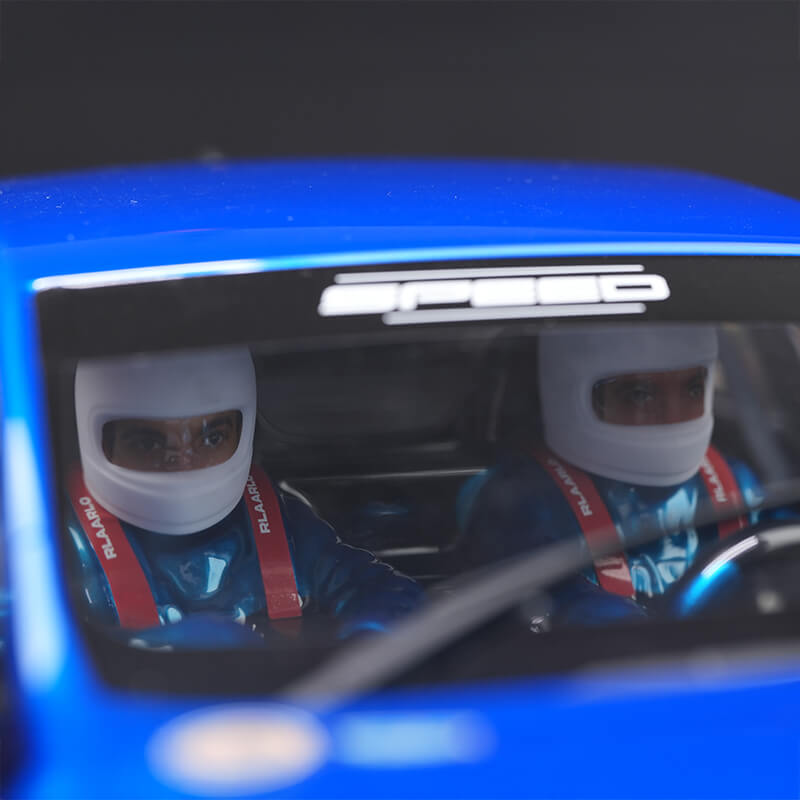

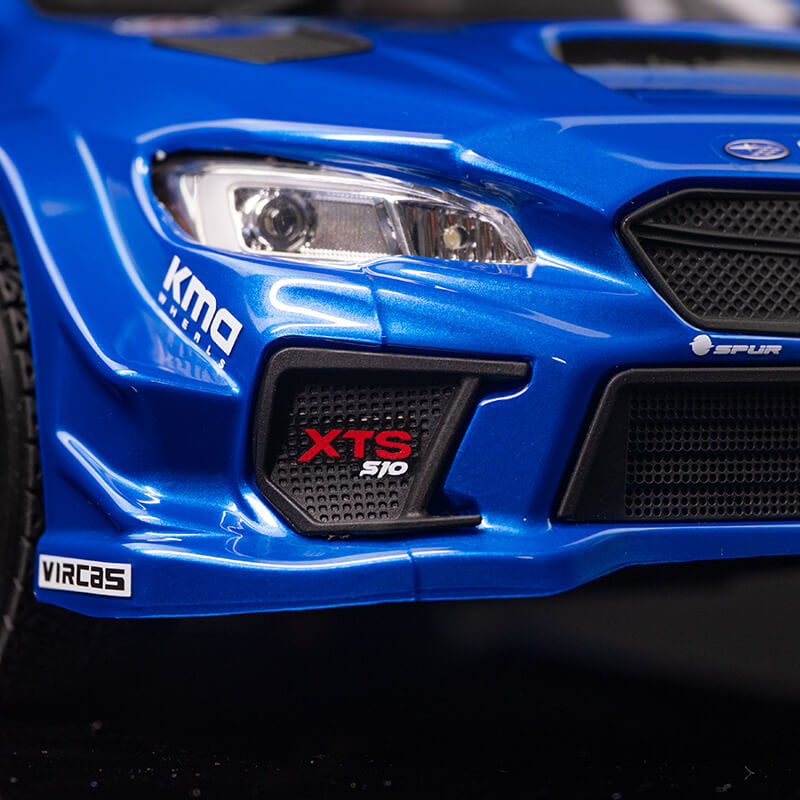

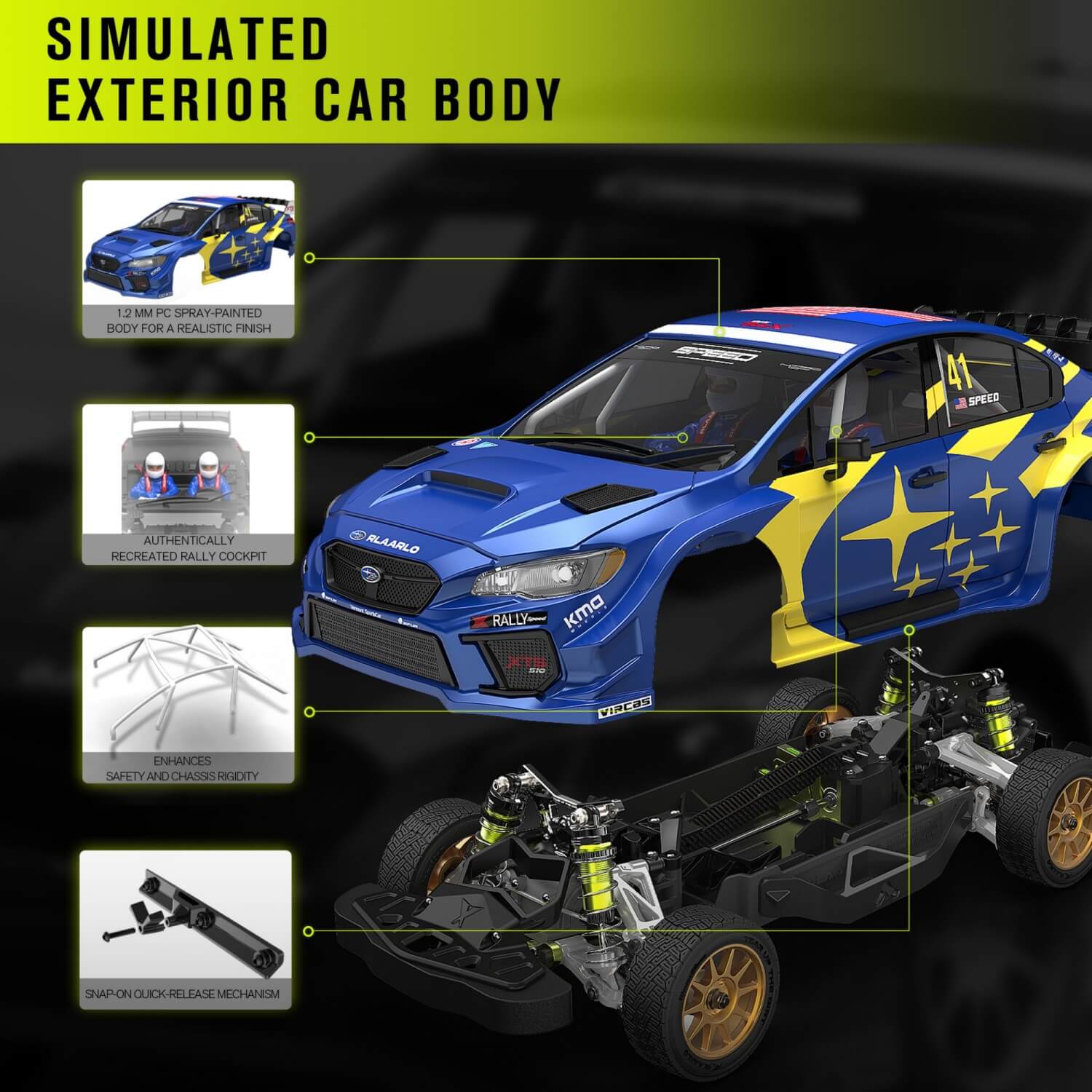

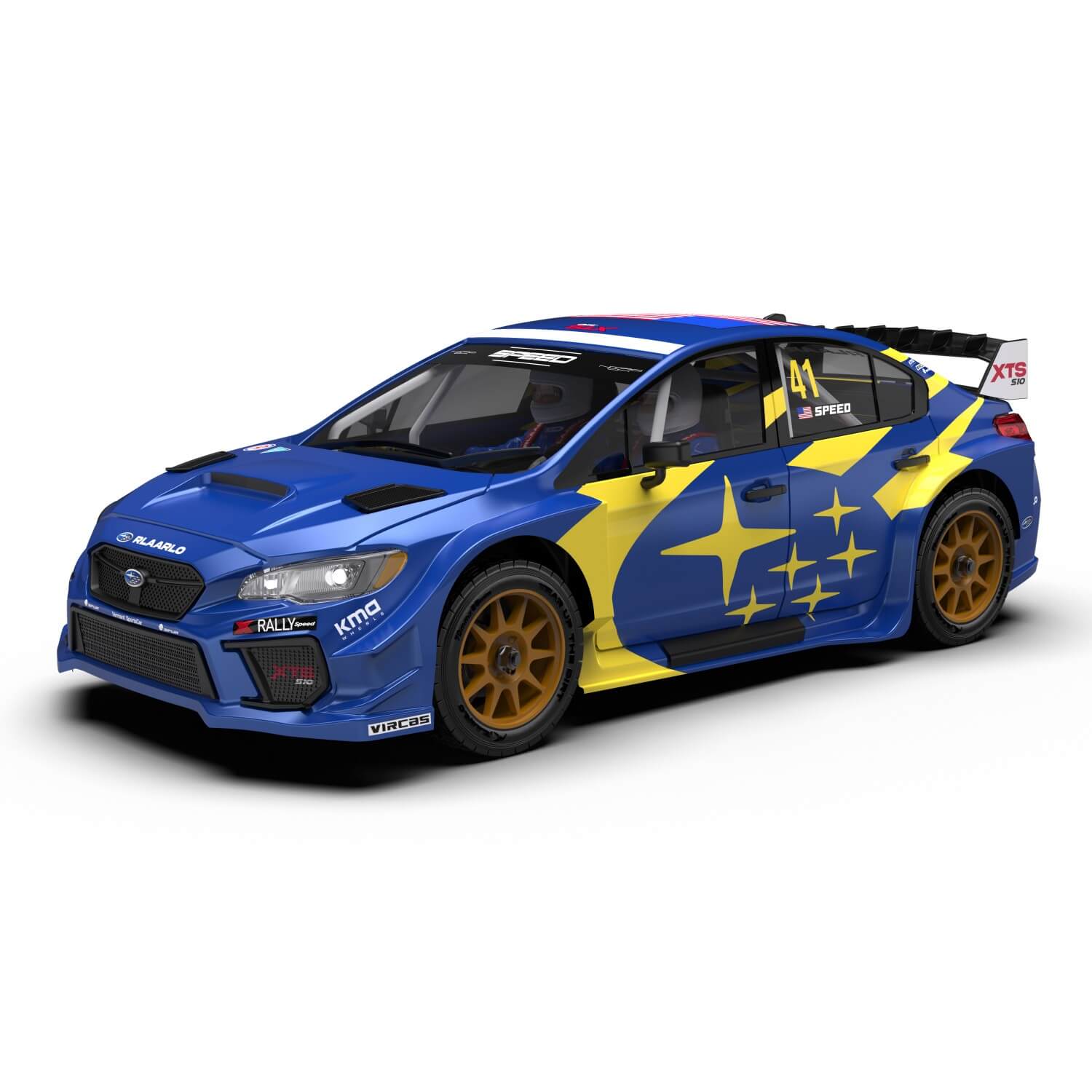

XTS-S10 Rally Car Body The body features a spray-painted finish for enhanced gloss. The interior includes a realistic dummy figure, faithfully recreating the rally car cockpit and authentic racing details to elevate overall realism and competitive performance
OPEN MODIFICATION SPACE
XTS-S10 190mm Track Width and 257mm Wheelbase provide seamless compatibility with the widest range of mainstream chassis components and bodies, offering every RC enthusiast greater freedom and choice
3S BRUSHLESS POWER SYSTEM
XTS-S10 Rally Car is powered by a 3652-3300KV Sensored brushless motor and protected by a Sensored brushless 80A ESC, delivering exceptional power output and millisecond-level response
HONORING THE LEGEND
XTS-S10 Rally Car Combining rally-inspired styling, custom-engineered metal shock towers and hydraulic dampers, and an extra-thick anti-roll bar for enhanced handling, paired with a high-spec carbon fiber Upper Deck
The XTS-S10 Rally Car is sure to make you the center of attention in an instant

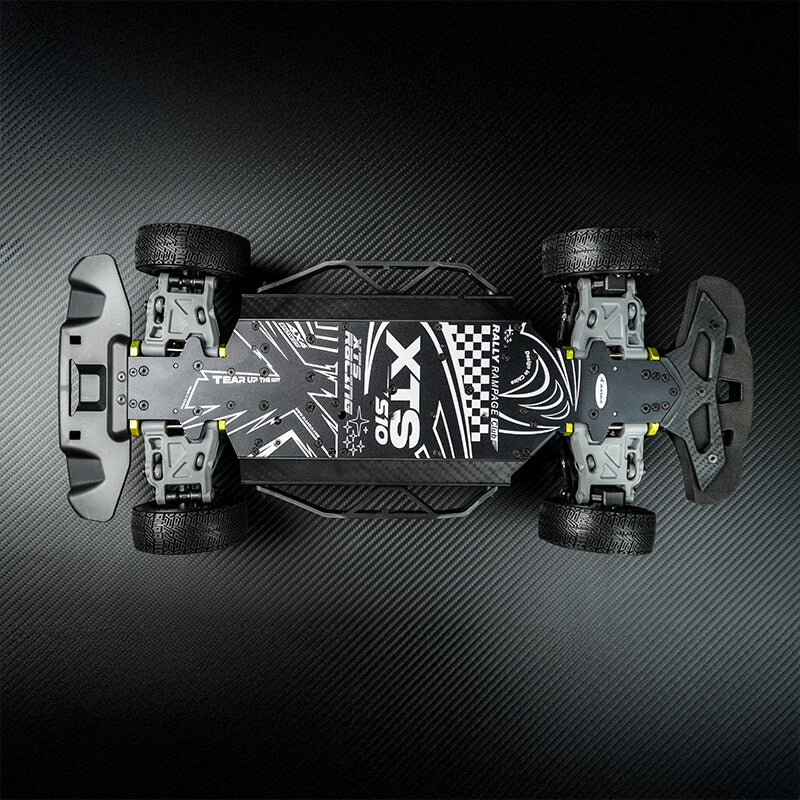

COMPETITION-GRADE ALUMINUM CONSTRUCTION
XTS-S10 Rally Car features a 2.5MM CNC-machined aluminum chassis with a dual-triangle support structure in both upper and lower positions, delivering ultimate durability under extreme track conditions
HIGH-PERFORMANCE SUSPENSION SYSTEM
XTS-S10 features a high-performance suspension system that effortlessly navigates various obstacles and delivers exceptional handling performance on diverse road surfaces. Performance-optimized suspension components ensure maximum suspension travel, preventing binding or interference.

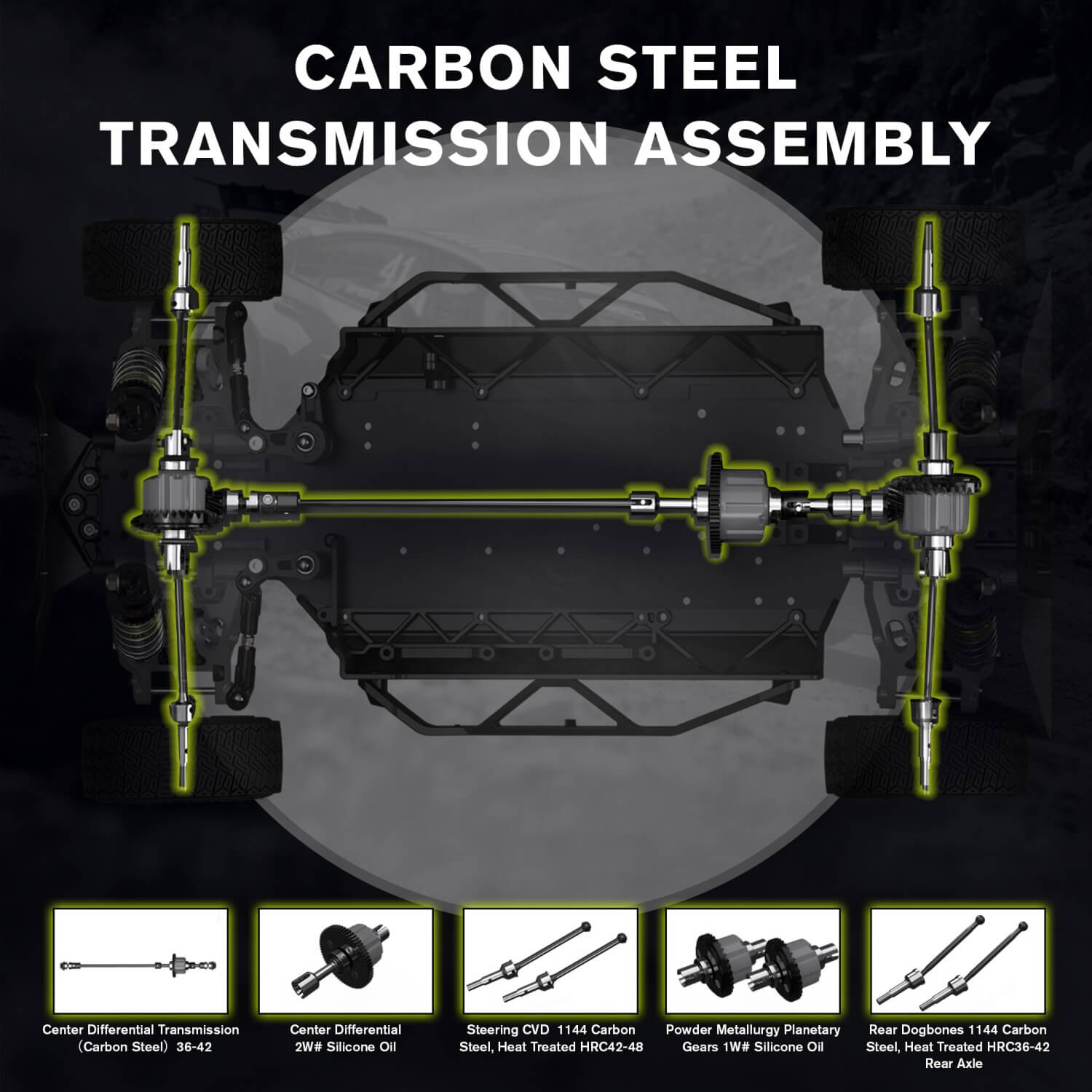

HIGH-STRENGTH METAL DRIVETRAIN SYSTEM
XTS-S10 Rally Car drivetrain incorporates steel components in multiple locations, delivering a more robust and durable structure that remains stable and reliable even under intense off-road conditions and high-impact stresses
3S BRUSHLESS POWER SYSTEM
High-performance 3652 brushless motor delivers explosive acceleration and sustained high-speed performance with exceptional power output. The 80A inductive ESC provides precise power control for outstanding acceleration and maximum speed capability
BETTER VEHICLE CONTROL
XTS-S10 Rally Car utilizes the Rlaarlo fourth-generation control system, featuring a 6-channel 350m remote controller with gyro-assisted functionality. Its user-friendly operation enhances stability and control performance, delivering an improved driving experience
Exquisite Body Graphics
XTS-S10 Rally Car features a body adorned with intricate, exclusive patterns. Every line is rendered with taut precision, delivering a powerful visual impact whether capturing the dynamic interplay of light and shadow during track runs or showcasing its static beauty when displayed
Quick-Release Body Shell Design
XTS-S10 Rally Car features a quick-release design without R-clips. Side skirt latches securely lock the body shell in place, enabling effortless and rapid assembly/disassembly. This design balances a clean aesthetic with efficient maintenance, reduces body vibration, and recreates authentic racing posture
Full-Body Synchronized Lighting
XTS-S10 Rally Car features full-body synchronized lighting with 9 distinct lighting modes. During operation, the lights dynamically change in response to vehicle maneuvers, maximizing realism and capturing authentic automotive details

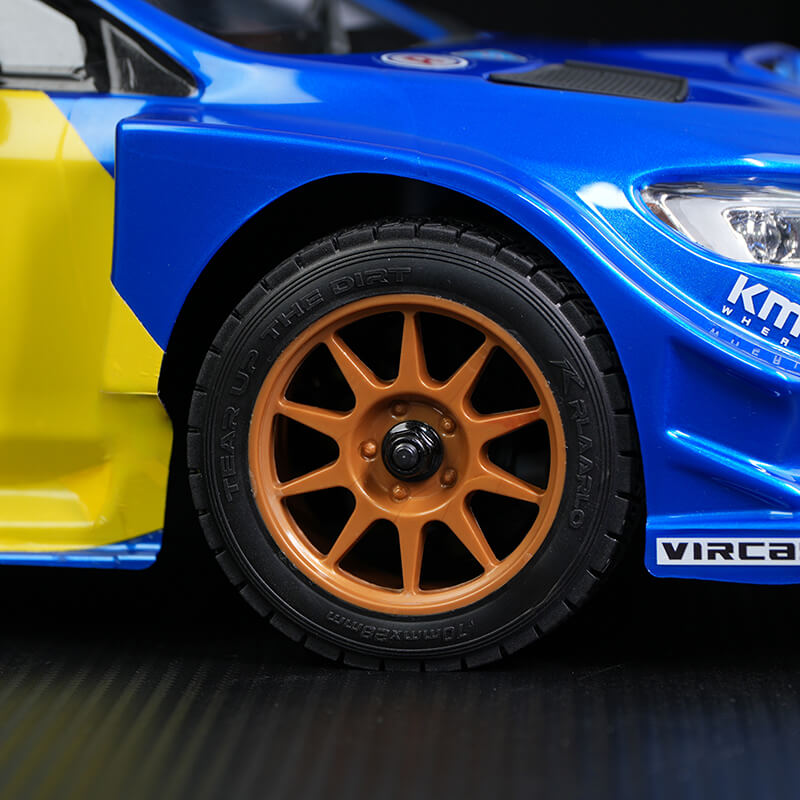

High-Grip Rally Wheels
The high-grip tread pattern of the XTS-S10 rally tire delivers authentic rally performance on asphalt or tarred surfaces, providing ample traction even on dusty paved roads.
Mudguard Assembly
XTS-S10 Rally Car is equipped with a mudguard assembly that provides enhanced protection for the vehicle's interior, preventing debris and rocks from entering the undercarriage and reducing damage to onboard equipment
Integrated Roll Cage Structure
XTS-S10 Rally Car Shell with Integrated Roll Cage StructureProvides robust support for the vehicle body, significantly enhancing overall strength and impact resistance. Delivers superior protective performance during intense collisions or rollovers, ensuring the safety of the shell and internal components
Easy-Access Modular Design
XTS-S10 Rally Car features a cleaner chassis wiring layout and balanced weight distribution. With dual receiver boxes and ESC trays, it supports various modifications, enhancing control and stability
Easy To Install Battery Compartment
Dual-height battery mount is compatible with various battery types and quickly fits the Rlaarlo 4400mAh 3S battery（108.5*44*34.5MM）for convenience.
Impact Protection System
XTS-S10 Rally Car features a large foam bumper at the front, designed to absorb massive collision impacts while protecting expensive chassis components. This enhances stability during high-speed cornering and aggressive jumps and landings
Aluminum Adjustable Motor Mount
XTS-S10 Rally Car features a sliding adjustable motor mount for easy swapping of different pinion gears, allowing flexible adjustment of maximum speed.
Chrome Steel Gears
XTS-S10 Rally Car's drivetrain is designed for 3S brushless power. Both the central spur gear and pinion gear are made from chrome steel for enhanced wear resistance, ensuring exceptional durability and reliability
Chromium Steel Spiral Gears
XTS-S10 Rally Car features a chrome steel spiral bevel gear design, delivering stable, durable, and highly efficient power transmission for rally vehicles
Sealed Design Center Differential
XTS-S10 Rally Car further enhances the sealing of the center differential, effectively preventing gravel and debris from entering. This provides comprehensive protection for the drivetrain, ensuring its stable operation
High-Strength CVD Drive System
The CVD design significantly enhances steering smoothness while maintaining maximum strength. The rear dogbone driveshaft reduces rotational mass, enabling faster acceleration and superior handling performance
Aluminum Adjustable Hydraulic Shock Absorbers
CNC Aluminum Alloy Hydraulic Shock Absorbers Easily adjust vehicle posture by modifying spring stiffness, effectively absorbing and dispersing vibrations.Effortlessly withstand powerful impacts, enhancing driving stability and optimizing the driving experience.
Aerospace-Grade Shock Tower System
XTS-S10 Rally car suspension mount is meticulously crafted from 7075 aluminum alloy and features adjustable mounting holes. These allow installation at different positions to adjust the vehicle's height as needed
Adjustable Tie Rod System
Adjustable for varying terrain conditions, enhancing driving performance and handling for all road surfaces
Suspension Arm Tuning
XTS-S10 employs a more robust nylon swing arm designed for enhanced durability and impact resistance. Through clever engineering and precision structural reinforcement, it achieves superior strength and greater resilience. Additionally, an optional adjustable upper control arm (Part No.: S10-054) is available for purchase, enabling easy adjustment of wheel camber to adapt to various track conditions
Metal Connection Shock Mount
The shock tower shock tower standoff are made from metal, enhancing durability and preventing chassis deformation during impacts, improving overall stability and lifespan
Front and Rear Anti-Roll Bars
Front and rear anti-roll bars balance the left and right wheels, reducing vehicle roll during turns. This stabilizes the vehicle and enhances handling stability
Waterproof Receiver Box
XTS-S10 Rally Car features a dual receiver box design to accommodate various modification layouts, enabling cleaner wiring and splash protection for enhanced receiver safeguarding
Dual ESC Tray
XTS-S10 Rally Car features a dual ESC tray design for expanded modification options, equipped with high-strength double-sided tape and cushioning foam to ensure secure ESC mounting
Sensored Brushless 80A ESC
Built-in cooling fan system maintains optimal temperatures in high-heat environments. Independent switches and water-sealed design effectively prevent moisture intrusion. Programmable functionality via Rlaarlo ESC programming card delivers maximum adjustment flexibility
3652-3300KV Brushless Motor
The 3652-3300KV Brushless motor delivers explosive acceleration and sustained high-speed performance, featuring exceptional power output to ensure outstanding performance on high-speed tracks and challenging off-road terrain
11kg Waterproof Metal Gear Servo
Waterproof design with minimal backlash ensures precise steering control. Compared to plastic gear servos, it offers superior stability and faster response times. It delivers extended service life in demanding off-road environments

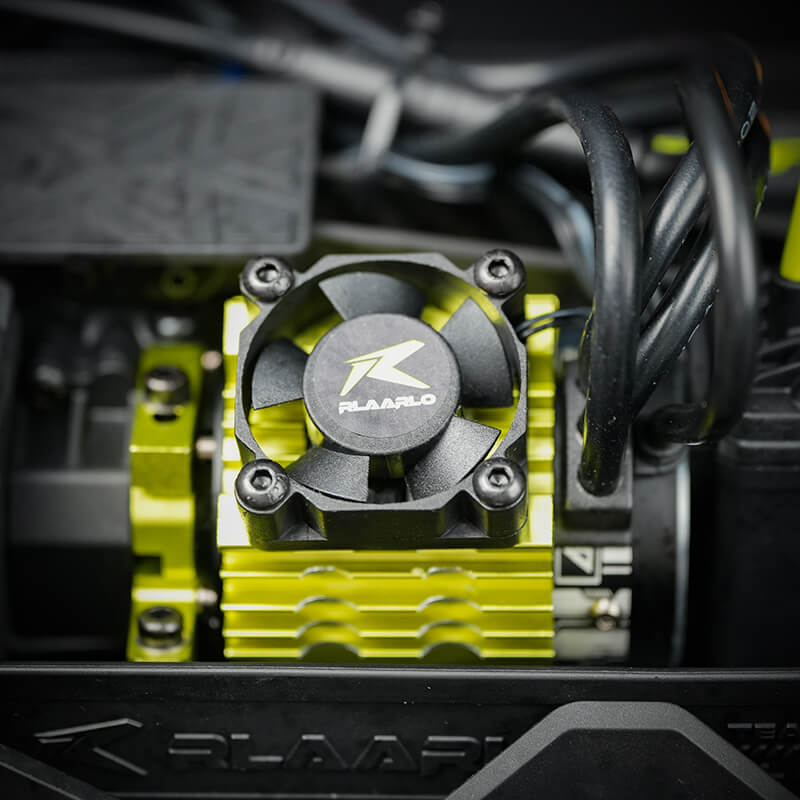

Motor Cooling Fans
Effectively reduces operating temperatures to ensure sustained power delivery from the powertrain. Whether accelerating at high speeds or tackling extended off-road conditions, it maintains stability and unleashes full performance

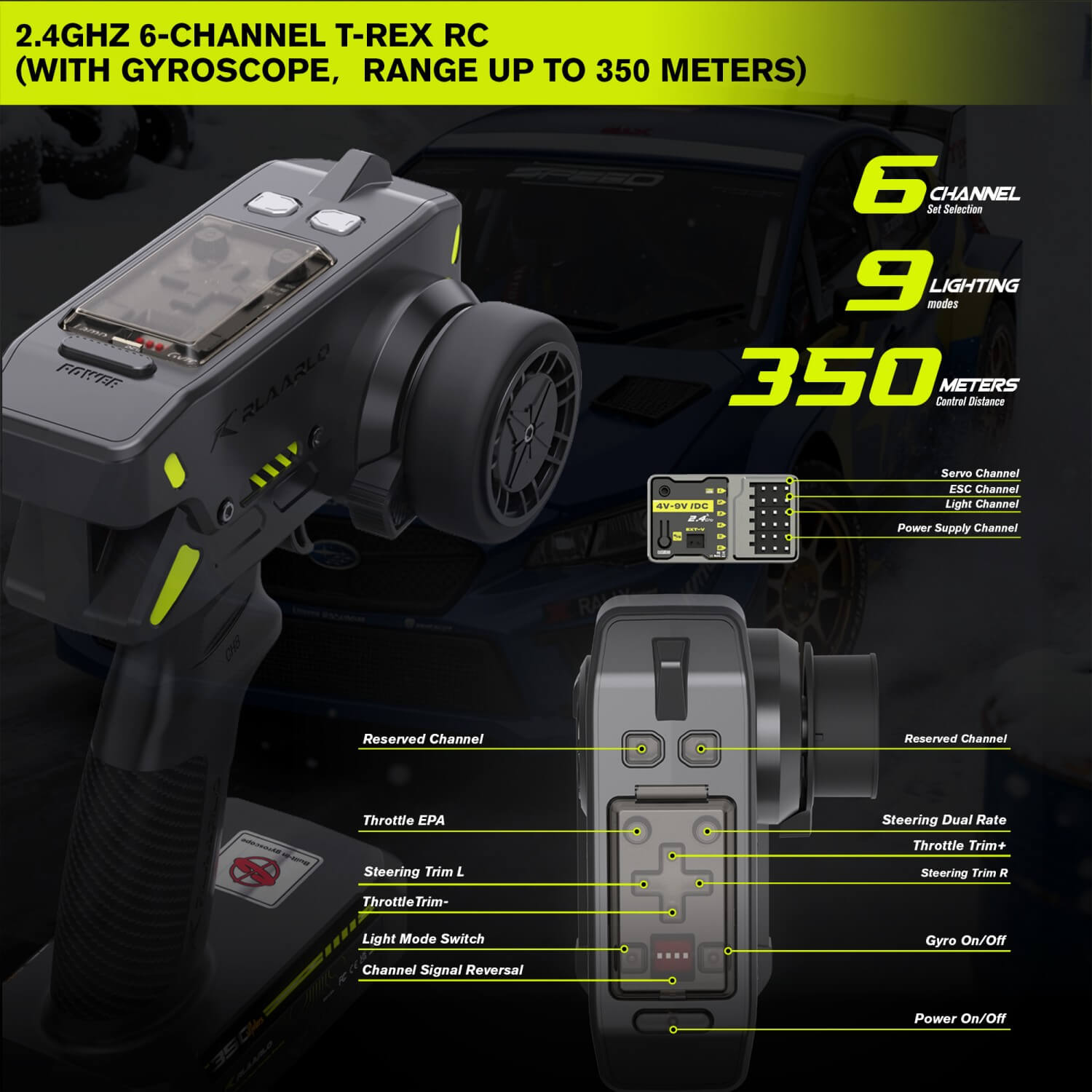

All-New T-rex Transmitter
Rlaarlo all-new fourth-generation 2.4GHz 6-channel remote control system delivers an operating range of up to 350 meters, suitable for all drivers. With millisecond-level response speed, it reacts instantly whether you're using 2S or 3S batteries, minimizing latency and enhancing driving control
6-Channel Receiver With Gyro Functionality
6-channel receiver with built-in gyro functionality, simple and easy to operate. Easily pair with the remote control using the buttons on the receiver
Exquisite Body Graphics
XTS-S10 Rally Car features a body adorned with intricate, exclusive patterns. Every line is rendered with taut precision, delivering a powerful visual impact whether capturing the dynamic interplay of light and shadow during track runs or showcasing its static beauty when displayed
Quick-Release Body Shell Design
XTS-S10 Rally Car features a quick-release design without R-clips. Side skirt latches securely lock the body shell in place, enabling effortless and rapid assembly/disassembly. This design balances a clean aesthetic with efficient maintenance, reduces body vibration, and recreates authentic racing posture
Full-Body Synchronized Lighting
XTS-S10 Rally Car features full-body synchronized lighting with 9 distinct lighting modes. During operation, the lights dynamically change in response to vehicle maneuvers, maximizing realism and capturing authentic automotive details
High-Grip Rally Wheels
The high-grip tread pattern of the XTS-S10 rally tire delivers authentic rally performance on asphalt or tarred surfaces, providing ample traction even on dusty paved roads.
Mudguard Assembly
XTS-S10 Rally Car is equipped with a mudguard assembly that provides enhanced protection for the vehicle's interior, preventing debris and rocks from entering the undercarriage and reducing damage to onboard equipment
Integrated Roll Cage Structure
XTS-S10 Rally Car Shell with Integrated Roll Cage StructureProvides robust support for the vehicle body, significantly enhancing overall strength and impact resistance. Delivers superior protective performance during intense collisions or rollovers, ensuring the safety of the shell and internal components
Easy-Access Modular Design
XTS-S10 Rally Car features a cleaner chassis wiring layout and balanced weight distribution. With dual receiver boxes and ESC trays, it supports various modifications, enhancing control and stability.
Extended Runtime Battery System
Dual-height battery mount is compatible with various battery types and quickly fits the Rlaarlo 4400mAh 3S battery（108.5*44*34.5MM）for convenience.
Impact Protection System
XTS-S10 Rally Car features a large foam bumper at the front, designed to absorb massive collision impacts while protecting expensive chassis components. This enhances stability during high-speed cornering and aggressive jumps and landings
Aluminum Adjustable Motor Mount
XTS-S10 Rally Car features a sliding adjustable motor mount for easy swapping of different pinion gears, allowing flexible adjustment of maximum speed.
Chrome Steel Gears
XTS-S10 Rally Car's drivetrain is designed for 3S brushless power. Both the central spur gear and pinion gear are made from chrome steel for enhanced wear resistance, ensuring exceptional durability and reliability.
Chromium Steel Spiral Gears
XTS-S10 Rally Car features a chrome steel spiral bevel gear design, delivering stable, durable, and highly efficient power transmission for rally vehicles
Sealed Design Center Differential
XTS-S10 Rally Car further enhances the sealing of the center differential, effectively preventing gravel and debris from entering. This provides comprehensive protection for the drivetrain, ensuring its stable operation
High-Strength CVD Drive System
The CVD design significantly enhances steering smoothness while maintaining maximum strength. The rear dogbone driveshaft reduces rotational mass, enabling faster acceleration and superior handling performance
Aluminum Adjustable Hydraulic Shock Absorbers
CNC Aluminum Alloy Hydraulic Shock Absorbers Easily adjust vehicle posture by modifying spring stiffness, effectively absorbing and dispersing vibrations.Effortlessly withstand powerful impacts, enhancing driving stability and optimizing the driving experience.
Aerospace-Grade Shock Tower System
XTS-S10 Rally car suspension mount is meticulously crafted from 7075 aluminum alloy and features adjustable mounting holes. These allow installation at different positions to adjust the vehicle's height as needed
Adjustable Tie Rod System
Adjustable for varying terrain conditions, enhancing driving performance and handling for all road surfaces
Suspension Arm Tuning
XTS-S10 employs a more robust nylon swing arm designed for enhanced durability and impact resistance. Through clever engineering and precision structural reinforcement, it achieves superior strength and greater resilience. Additionally, an optional adjustable upper control arm (Part No.: S10-054) is available for purchase, enabling easy adjustment of wheel camber to adapt to various track conditions
Metal Connection Shock Mount
The shock tower connections are made from metal, enhancing durability and preventing chassis deformation during impacts, improving overall stability and lifespan.
Front and Rear Anti-Roll Bars
Front and rear anti-roll bars balance the left and right wheels, reducing vehicle roll during turns. This stabilizes the vehicle and enhances handling stability
Waterproof Receiver Box
XTS-S10 Rally Car features a dual receiver box design to accommodate various modification layouts, enabling cleaner wiring and splash protection for enhanced receiver safeguarding
Dual ESC Tray
XTS-S10 Rally Car features a dual ESC tray design for expanded modification options, equipped with high-strength double-sided tape and cushioning foam to ensure secure ESC mounting
Sensored Brushless 80A ESC
Built-in cooling fan system maintains optimal temperatures in high-heat environments. Independent switches and water-sealed design effectively prevent moisture intrusion. Programmable functionality via Rlaarlo ESC programming card delivers maximum adjustment flexibility
3652-3300KV Brushless Motor
The 3652-3300KV Brushless motor delivers explosive acceleration and sustained high-speed performance, featuring exceptional power output to ensure outstanding performance on high-speed tracks and challenging off-road terrain
11kg Waterproof Metal Gear Servo
Waterproof design with minimal backlash ensures precise steering control. Compared to plastic gear servos, it offers superior stability and faster response times. It delivers extended service life in demanding off-road environments
Motor Cooling Fans
Effectively reduces operating temperatures to ensure sustained power delivery from the powertrain. Whether accelerating at high speeds or tackling extended off-road conditions, it maintains stability and unleashes full performance
All-New T-Rex Transmitter
Rlaarlo's all-new fourth-generation 2.4GHz 6-channel remote control system delivers an operating range of up to 350 meters, suitable for all drivers. With millisecond-level response speed, it reacts instantly whether you're using 2S or 3S batteries, minimizing latency and enhancing driving control
6-Channel Receiver With Gyro Functionality
6-Channel receiver with built-in gyro functionality, simple and easy to operate. Easily pair with the remote control using the buttons on the receiver
Type | 3652-3300kV |
Weight | 184g |
Can Length | 52 MM |
Diameter | 36 MM |
Shaft Diameter | 3.175 MM |
Connector Type | 4mm Bullet |
Type | 3652-3300kV Brushless |
Weight | 184g |
Can Length | 52 MM |
Diameter | 36 MM |
Shaft Diameter | 3.175 MM |
Connector Type | 4mm Bullet |
Type | 80A |
Input Voltage | 2-3S LiPo |
Continuous | 80A |
Low Voltage | YES |
Thermal | YES |
ESC Battery | XT60 |
Type | 80A Brushless ESC |
Input Voltage (Cells) | 2-3S LiPo |
Continuous Current Capacity | 80A |
Low Voltage Protection | YES |
Thermal Protection | YES |
ESC Battery Connector Type | XT60 |

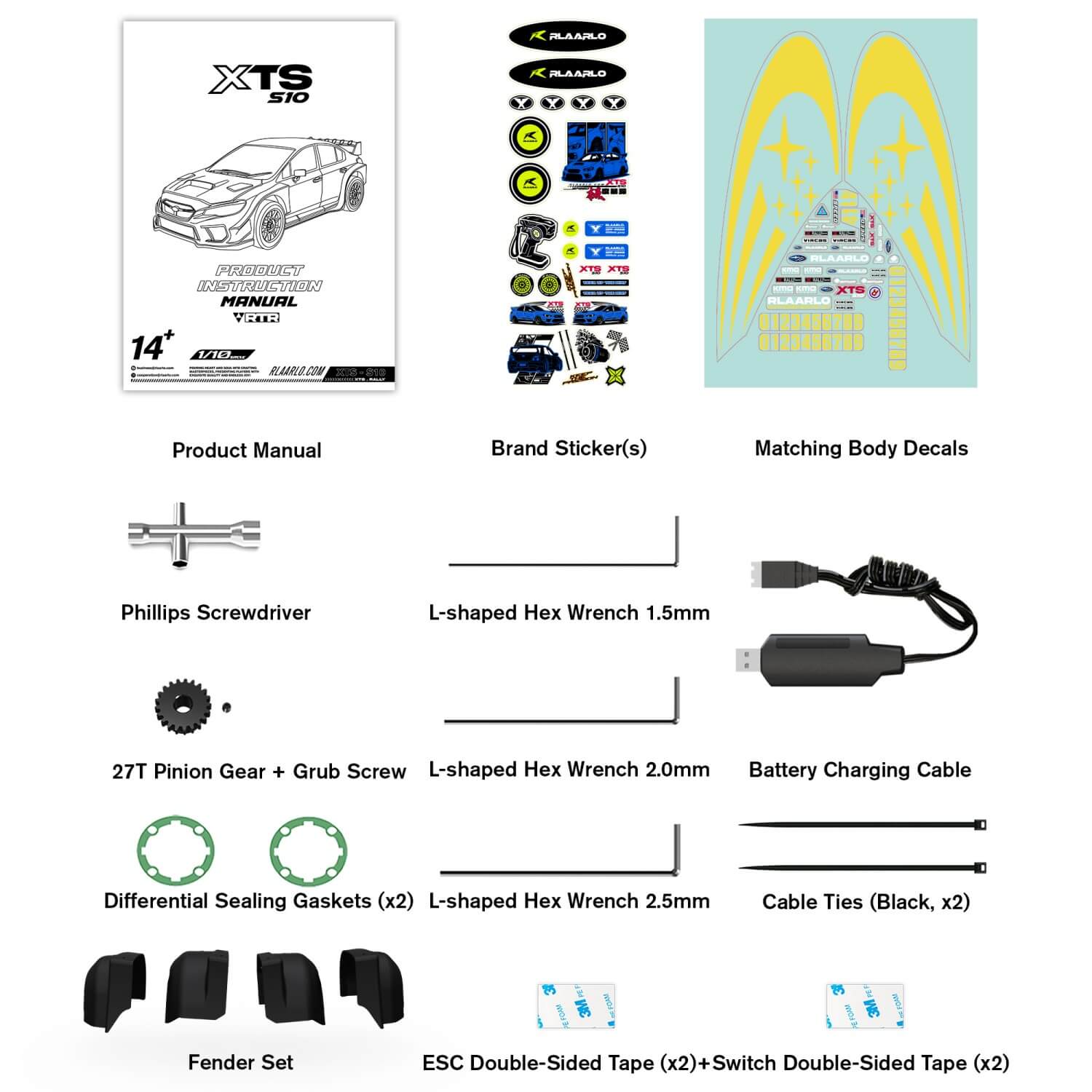

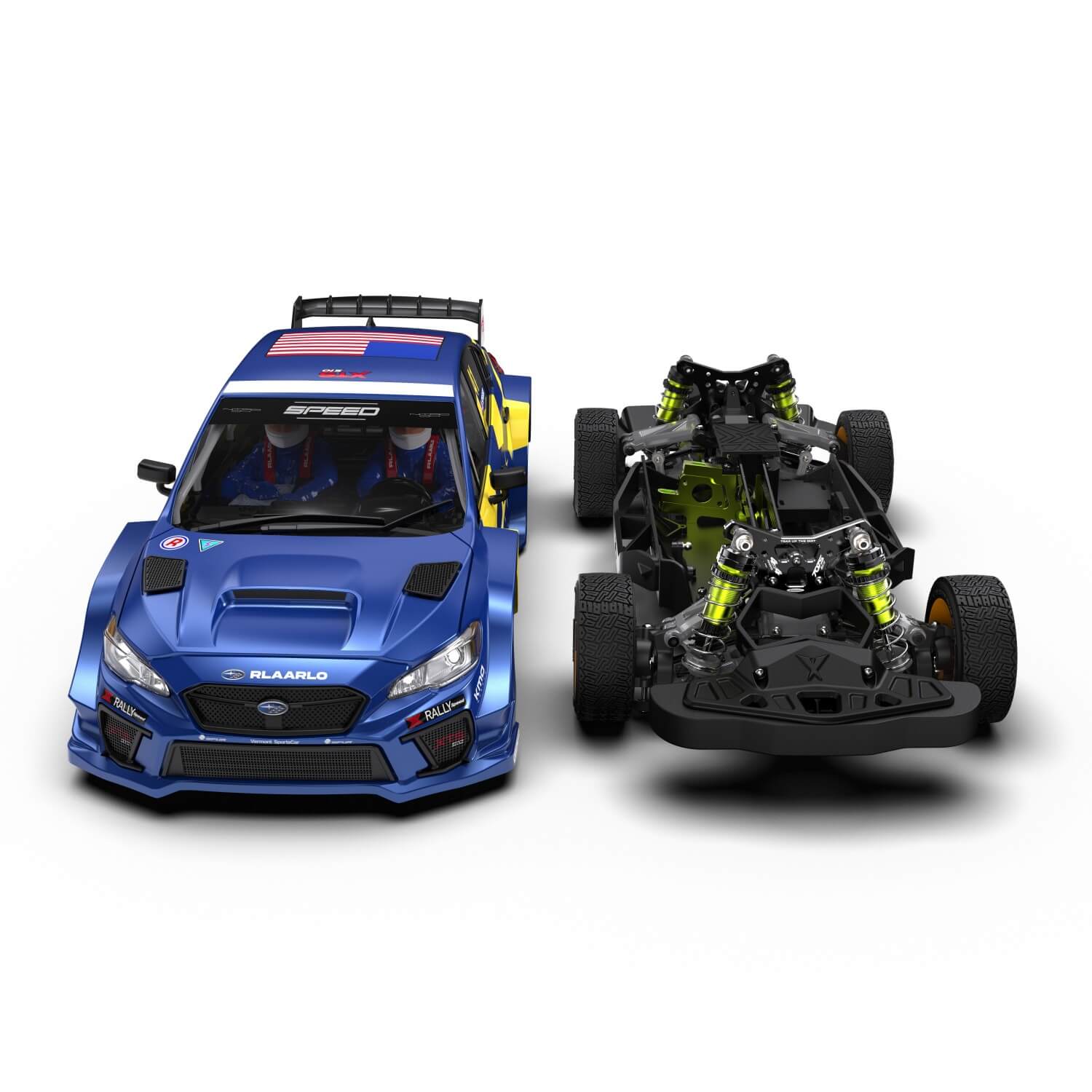

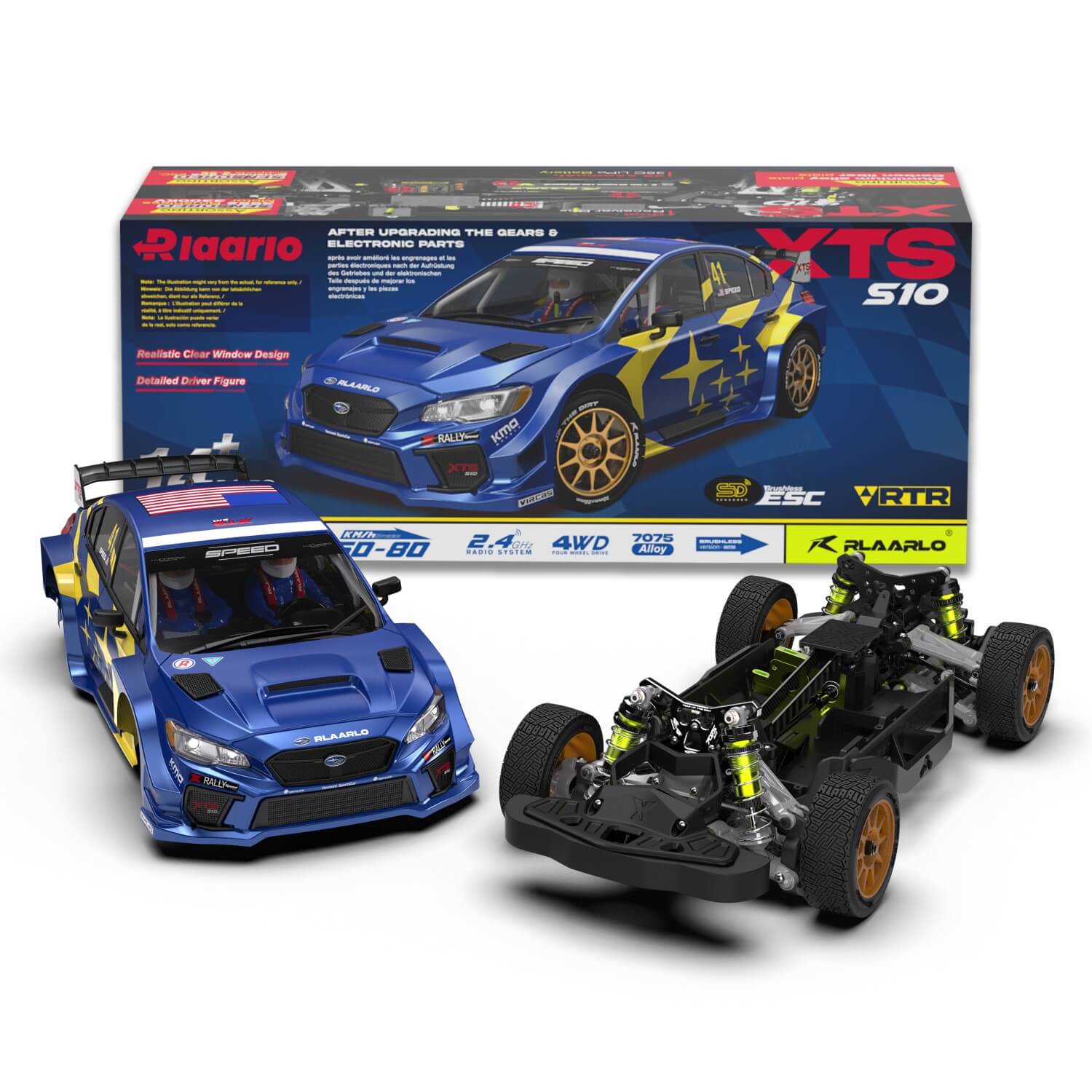

XTS-S10 Carbon Fiber RTR Version | XTS-S10 Carbon Fiber Roller Version
|
1. Instruction manual | 1. Instruction manual
|
